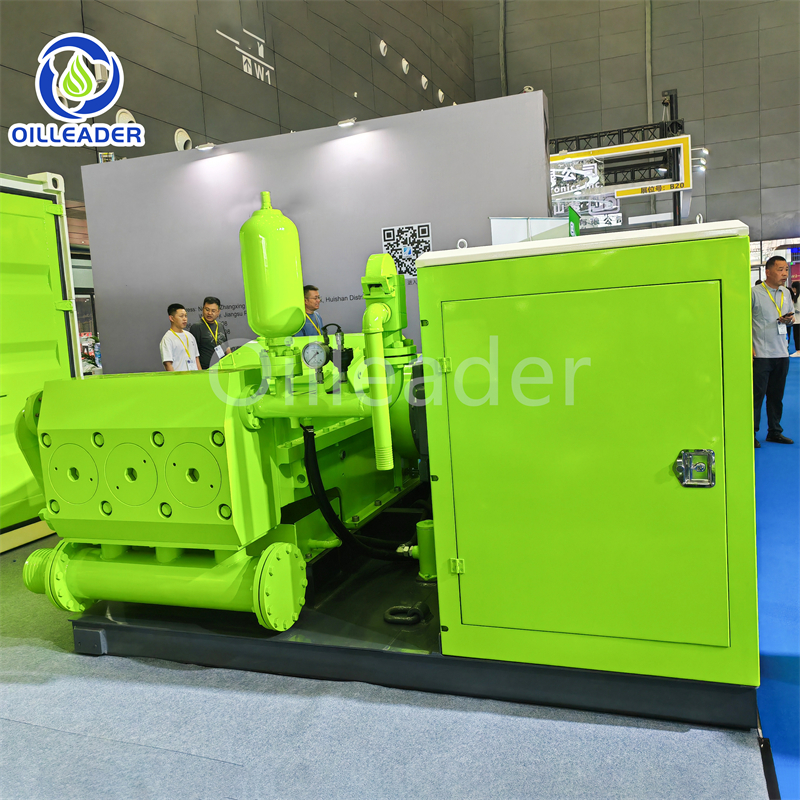

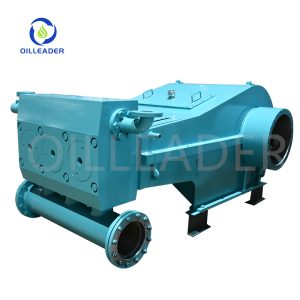

HDD Pump 3DP-2800 Drilling Machine High Pressure

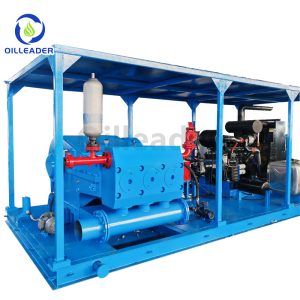

HDD Pump 3DP-2800 Drilling Machine High Pressure - 图片 2

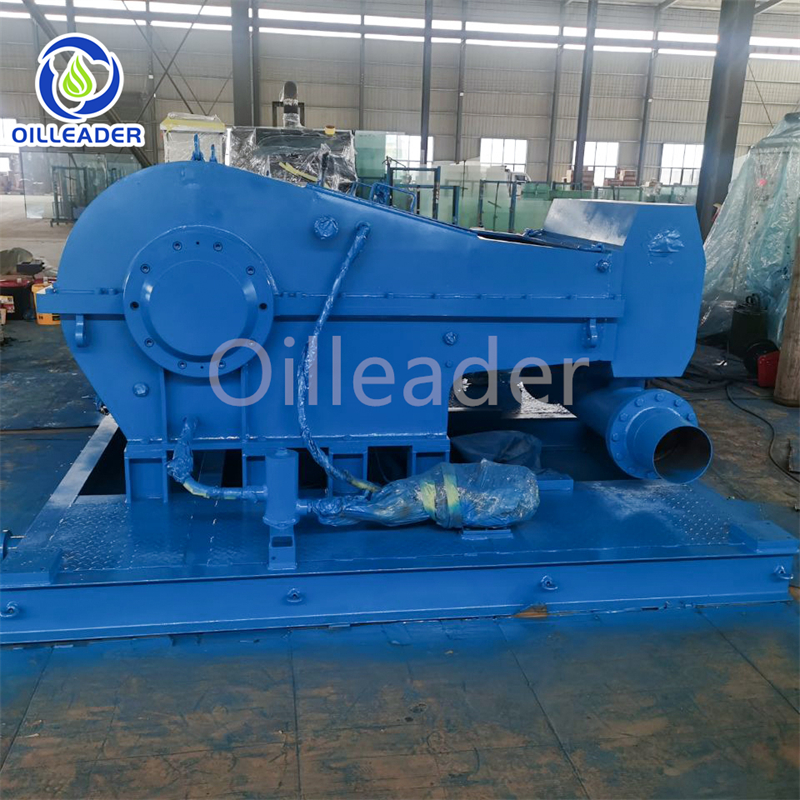

HDD Pump 3DP-2800 Drilling Machine High Pressure - 图片 3

HDD Pump 3DP-2800 Drilling Machine High Pressure - 图片 4

HDD Pump 3DP-2800 Drilling Machine High Pressure - 图片 5

Hdd Pump

HDD Pump 3DP-2800 Drilling Machine High Pressure

Name: HDD Pump 3DP-2800 Drilling Machine High Pressure
SKU: 3DP-2800
Availability: InStock

$3,800.00

3DP2800

Flow rate: 2800L/min

Pressure: 10Mpa

Power: 315KW

0verall dimension: 2150*1700*1750mm

Weight: 4000kg

Our Advantage

1. One stop service. We provide various drilling equipment and accessories for overseas clients in different drilling fields.
Including oil drilling and repair machines, horizontal drilling rigs, horizontal directional drilling rigs, mud pumps and
accessories, solid control systems and equipment, etc. It can meet various needs of customers.
2. Quality assurance. Our supplier’s products are strictly produced according to standards and provide corresponding after-sales
service to customers, actively handling and solving a series of problems encountered by customers during use.
3. Professional team. In terms of production research, we have sufficient technical talents to support the product production
line and ensure product quality; In terms of sales, we have professional and enthusiastic service personnel to ensure the
sales and after-sales service of our products, and to ensure the stability and durability of our cooperative relationship.
4. Fast delivery. Our company has dedicated tracking personnel to ensure the normal production and delivery of orders.

SKU： 3DP-2800 分类： Hdd Pump

描述

Q: Are you trading company or manufacturer ?
A: We are trading company with 10 years export experience, but we have been purchase agents for years of clients from America,
Azerbaijan, South America, India, Egypt, South Africa, Kazakhstan.
Hope we could also be your sincere supplier in this field.

Specification

Pump Model	3DP-2800
Type	Triplex Piston Pump
Lubrication Method	Forced Lubrication
（SPM）	140
Max Displacement	2800 L/min (740GPM）
Max. Pressure	9 Mpa/1300PSI
Stroke Length	177.8mm/7inch
Installed Liner Size	220 (8 1/2inch)
Input Power	300kw (400HP)
Outlet Pipe Dia.	89 (3 1/2inch)
Inlet Pipe Dia.	273 (10 5/8inch)
Weight	7800kg (17196lbs)
Dimension mm (LxWxH)	2300x1729x1700mm (690x519x510ft)
