Product Description

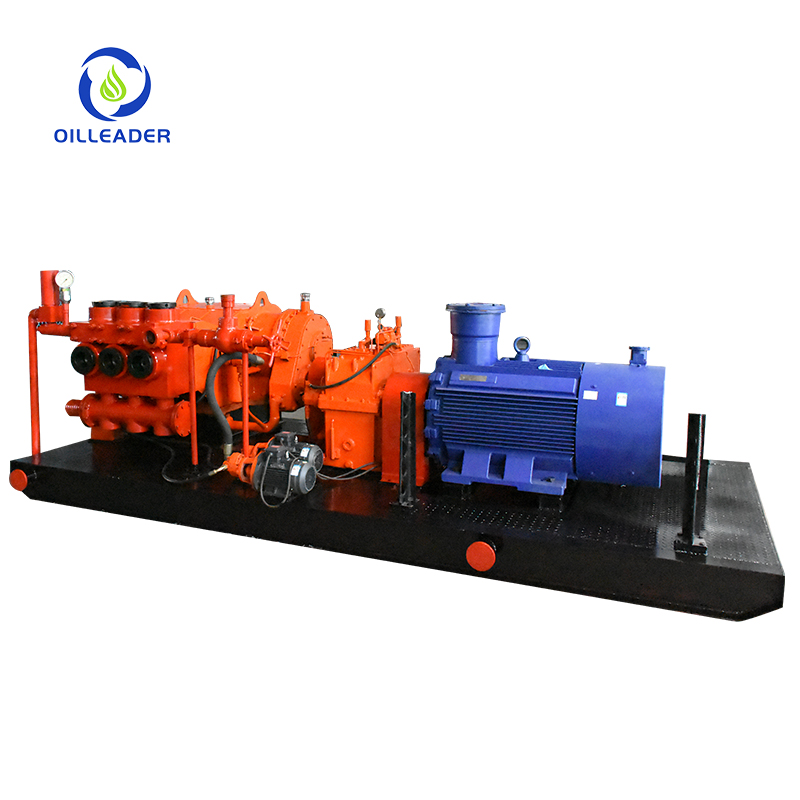

Our company F series mud pump is designed and manufactured strictly accordance with API 7K standard on the basis of Emsco F series mud pump. All its spare parts can be compatible with any other make pump. Therefore, the pump is easy to maintain internationally.
F series mud pump is applicable to the requirement of high pump pressure in oil field and high displacement technology of well drilling with its solid and compact structure, small volume and outstanding operation performance.
F series mud pump has long stroke maintaining operation at lower frequency resulting in enhancing the performance of giving water effectively and prolonging the lifetime of the consumable hydrokinetic parts, the air-suction kit is advanced in structure and reliable at operation to reach the optimized absorbing target of air suction into line pipe.
F series pump powering side adopts the combined lubrication id forced and flashing lubrication featured with reliable lubrication and adding the operation lifetime of powering part.
This series pump is widely used in oil fields and other lines of industrial and mining enterprises, operation ofdrilling well and well repairing in oil field and other lines of industrial and mining enterprises, operation of drilling well and well repairing etc.
Specification
Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL |
Power Rating | 500HP (373kw) | 800HP (597kw) | 1000HP (746kw) | 1300HP (969kw) | 1600HP (1193kw) | 1600HP (1193kw) |
Rated Stroke (SPM) | 165 | 150 | 140 | 120 | 120 | 120 |
Stroke Length | 7.5” /190.5mm | 9”/228.6mm | 10”/254mm | 12”/305mm | 12”/305mm | 12”/305mm |
Gear Ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 | 4.206 |
Valve Size | API5# | API6# | API6# | API7# | API7# | API7# |
Max. Liner Size | 6-3/4”/170mm | 6-3/4”/170mm | 6-3/4”/170mm | 7”/180mm | 7”/180mm | 7”/180mm |
Max. Pressure | 3945psi (27.2Mpa) | 5000psi (35Mpa) | 5000psi (35Mpa) | 5000psi (35Mpa) | 5000psi (35Mpa) | 7500psi (52Mpa) |
Max. Displacement | 565GPM (35.67L/s) | 617GPM (38.92L/s) | 639GPM (40.36L/s) | 737GPM (46.54L/s) | 737GPM (46.54L/s) | 737GPM (46.54L/s) |
Inlet Dia. | 8”/203mm | 10”/254mm | 12”/305mm | 12”/305mm | 12”/305mm | 12”/305mm |
Outlet Dia. | 4” Flange 5000psi | 5-1/8” Flange 5000psi | 5-1/8” Flange 5000psi | 5-1/8” Flange 5000psi | 5-1/8” Flange 5000psi | 5-1/8” Flange 10000psi |
Dimension L*W*H (mm) | 3658*2709*2231 | 3963*3025*2410 | 4267*3167*2580 | 4617*3260*2600 | 4615*3276*2688 | 5200*3276*2688 |
Weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 | 28570 |
