Product Description

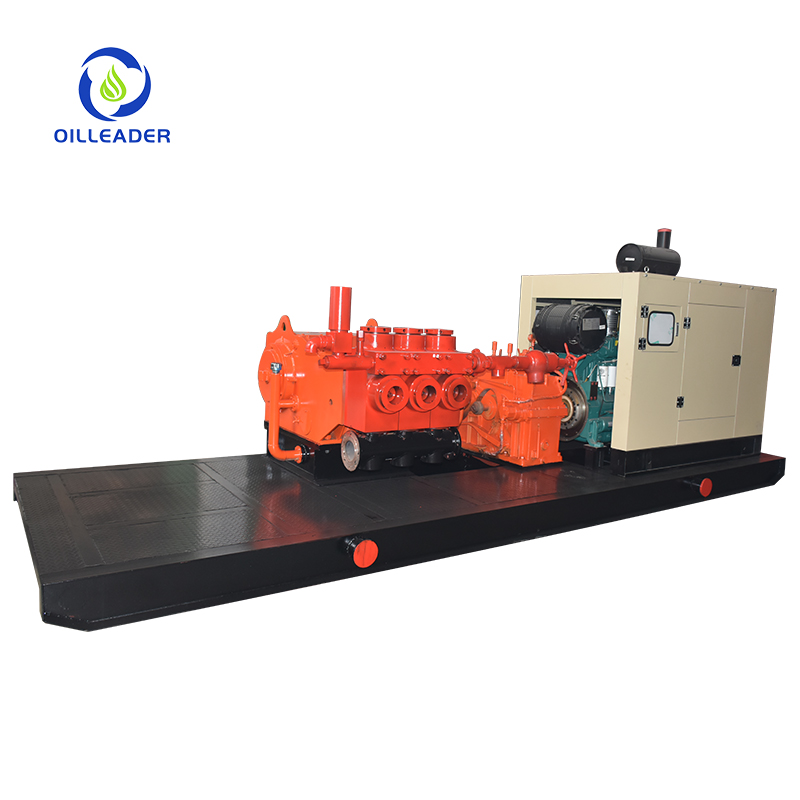

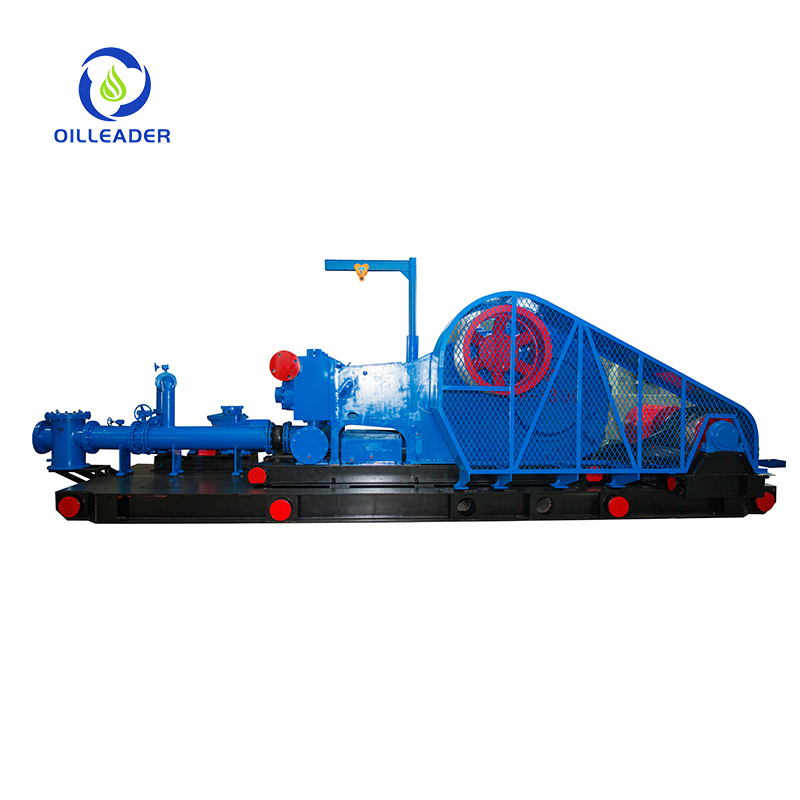

Our company F series mud pump is designed and manufactured strictly accordance with API 7K standard on the basis of Emsco F series mud pump. All its spare parts can be compatible with any other make pump. Therefore, the pump is easy to maintain internationally.
F series mud pump is applicable to the requirement of high pump pressure in oil field and high displacement technology of well drilling with its solid and compact structure, small volume and outstanding operation performance.
F series mud pump has long stroke maintaining operation at lower frequency resulting in enhancing the performance of giving water effectively and prolonging the lifetime of the consumable hydrokinetic parts, the air-suction kit is advanced in structure and reliable at operation to reach the optimized absorbing target of air suction into line pipe.
F series pump powering side adopts the combined lubrication id forced and flashing lubrication featured with reliable lubrication and adding the operation lifetime of powering part.
This series pump is widely used in oil fields and other lines of industrial and mining enterprises, operation ofdrilling well and well repairing in oil field and other lines of industrial and mining enterprises, operation of drilling well and well repairing etc.
Specification
Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL |
Power Rating | 500HP (373kw) | 800HP (597kw) | 1000HP (746kw) | 1300HP (969kw) | 1600HP (1193kw) | 1600HP (1193kw) |
Rated Stroke (SPM) | 165 | 150 | 140 | 120 | 120 | 120 |
Stroke Length | 7.5” /190.5mm | 9”/228.6mm | 10”/254mm | 12”/305mm | 12”/305mm | 12”/305mm |
Gear Ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 | 4.206 |
Valve Size | API5# | API6# | API6# | API7# | API7# | API7# |
Max. Liner Size | 6-3/4”/170mm | 6-3/4”/170mm | 6-3/4”/170mm | 7”/180mm | 7”/180mm | 7”/180mm |
Max. Pressure | 3945psi (27.2Mpa) | 5000psi | 5000psi | 5000psi | 5000psi | 7500psi (52Mpa) |
Max. Displacement | 565GPM | 617GPM | 639GPM | 737GPM | 737GPM | 737GPM |
Inlet Dia. | 8”/203mm | 10”/254mm | 12”/305mm | 12”/305mm | 12”/305mm | 12”/305mm |
Outlet Dia. | 4” Flange 5000psi | 5-1/8” Flange 5000psi | 5-1/8” Flange 5000psi | 5-1/8” Flange 5000psi | 5-1/8” Flange 5000psi | 5-1/8” Flange 10000psi |
Dimension L*W*H (mm) | 3658*2709*2231 | 3963*3025*2410 | 4267*3167*2580 | 4617*3260*2600 | 4615*3276*2688 | 5200*3276*2688 |
Weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 | 28570 |
Overview
Brand Name：OILLEADER Condition:NEW
Warranty:1 Year Showroom Location:Egypt, India，Kazakhstan，Russia ECT
Video outgoing-inspection:Provided Machinery Test Report:Provided
Packaging&Delivery
Packaging Details：Packing in nude / Spare parts in wooden box
Port：QINGDAO / TIANJIN / SHANGHAI
Lead time：To be negotiated
FAQ
How can I place order?
A: You can contact us by mat mail
How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank), L/C, D/P, Western Union are the most usual ways we are using. If you want to use other way, please tell me, we can discuss.
What’s the order procedure?
A: First we discuss order details, production details by email. Then we issue you an PI for your confirmation. You will be requested to do pr-epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
